Right angle magnetic connector square 6pin male and female electrical pogo pin

সকল বিভাগ

নির্ভুলতা বাঁক অংশ

আমাদের সাথে যোগাযোগ করুন

Ms. KIKI

union@upetech.net

13434524996

upetech

এখনই যোগাযোগ করুন

Right angle magnetic connector square 6pin male and female electrical pogo pin

ব্র্যান্ড নাম:	UPE
মডেল নম্বর:	VIC1202A /VIC1202B
MOQ.:	5000
দাম:	$1-$5
প্যাকেজিং বিশদ:	পিই ব্যাগ
অর্থ প্রদানের শর্তাবলী:	টি/টি

বিস্তারিত তথ্য

পণ্যের বিবরণ

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

ISO9002

নথি:

VIC1202A.pdf

নাম:

চৌম্বকীয় সংযোগকারী

উপাদান:

থান, ব্রাস, SOS304, NDFEB N52

বসন্ত বল:

80 জি ± 20 জি

ওয়ার্কিং স্টোর্ক:

1.0 মিমি

কারেন্ট:

5.0A

ভোল্টেজ:

12V

চৌম্বকীয় শক্তি:

600 জি

যান্ত্রিক জীবন:

50000 চক্র ন্যূনতম।

যোগাযোগ প্রতিরোধের:

50mΩ সর্বোচ্চ (পিন)

লবণ স্প্রে পরীক্ষা:

48H

যোগানের ক্ষমতা:

৫ কেপিসিএস/দিন

বিশেষভাবে তুলে ধরা:

right angle magnetic connector 6pin

square pogo pin connector

magnetic electrical connector male female

পণ্যের বিবরণ

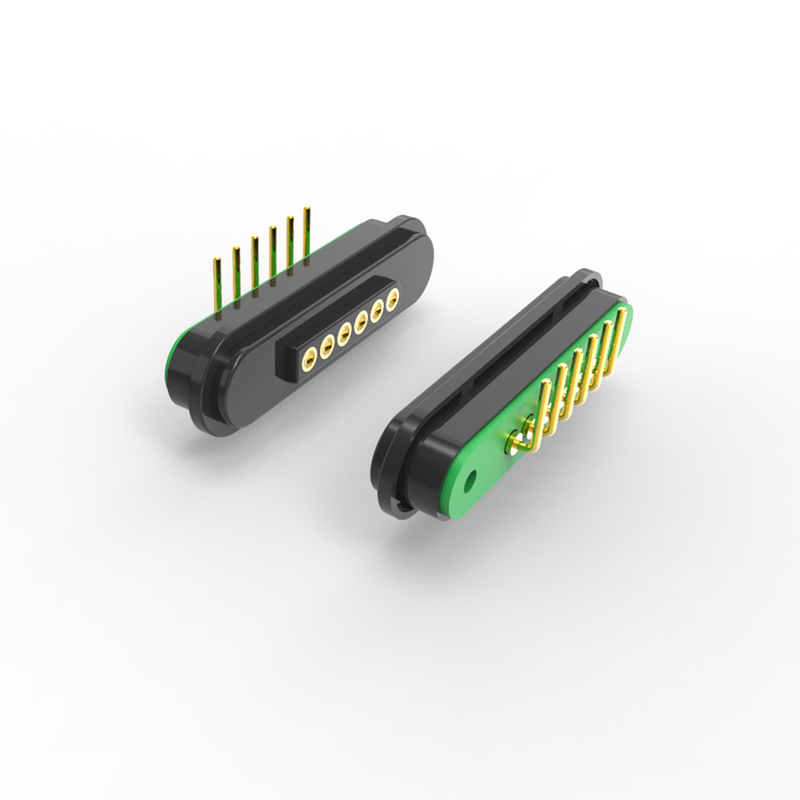

Right Angle Magnetic Connector Square 6pin Male and Female Electrical Pogo Pin

Right angle magnetic connector square 6pin male and female electrical pogo pin. Gold-Plated, HTN Housing, NdFeB Magnet, 12V/5A, UL94 V-0

UPE is a professional magnetic connector & magnetic cable connector manufacturer. We have our own professional designers to meet any of your requirements and provide magnetic connector customization service. Different magnetic pogo pin connector products and solutions can be designed according to different customer needs.

Key Features

Right-angle design: Saves space for PCB mounting in compact devices.
6-pin configuration: Supports power (12V/5A) + data signals.
Strong magnetic coupling: ≥600G holding force (NdFeB magnet).
High durability: 50,000+ mating cycles, UL94 V-0 flame-retardant.
Anti-short-circuit design with clear polarity marking.

Materials & Construction

Component	Specification
Contacts	6 pins (male/female), brass base with gold plating (≤50mΩ resistance).
Housing	HTN + 30% filler, UL94 V-0 black (high-temperature resistant).
Magnet	NdFeB (neodymium) with optional epoxy coating (passes 48hr salt spray test).

Mechanical & Electrical Properties

Parameter	Value
Spring Force (per pin)	80g ± 20g @ 1.0mm deflection.
Magnetic Force	≥600G (male-female adhesion).
Rated Voltage	12V DC.
Current Rating	3A continuous / 4A peak.
Contact Resistance	≤50mΩ per pin.
Operating Temperature	-30°C to +85°C.

5Pin Male Connector Technical Drawing (Key Dimensions)

5Pin Female Magnetic Connector Technical Drawing (Key Dimensions)

Why Choose UPE

Fast prototyping: 3-5 days for samples
Cost-effective: Competitive MOQ pricing
Quality assurance: 100% automated testing
High-tech production with precision engineering
Systematic quality control for consistent performance

Advantages of Magnetic Connector

Automatic adsorption connected experience; Easy operation
Uses a magnetic interface to remove the device easier
High life cycle. It supports 50,000-300,000 reattachment life times
Easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68)
Support a high current (3A-20A), faster recharge
Excellent corrosion rating (48H-120H) meet the harsh environments
Shape customized to meet with product shape matching, improve product selling point
Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish the direction (user-oriented and user-friendly)
Excellent scalability interface, Can be achieved (Power Signal Video Audio Jack Etc)
Development time is short, low-cost mold for customization
Provide a reliable high RF signal transmission. Our connector is USB 2.0
